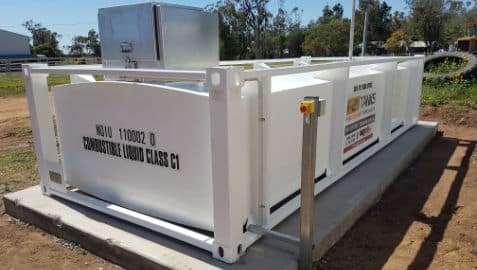

10,000l Self Bunded Tank – Diesel, Petrol or Oil Compatible

The BLOC 10,000 is the big daddy of the BLOC range. It has the largest tank footprint and storage capacity. An ideal solution for operators that consume large volumes of fuel and want the competitive savings of large volume fuel delivery and storage in one simple solution.

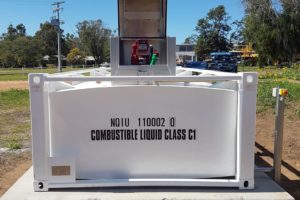

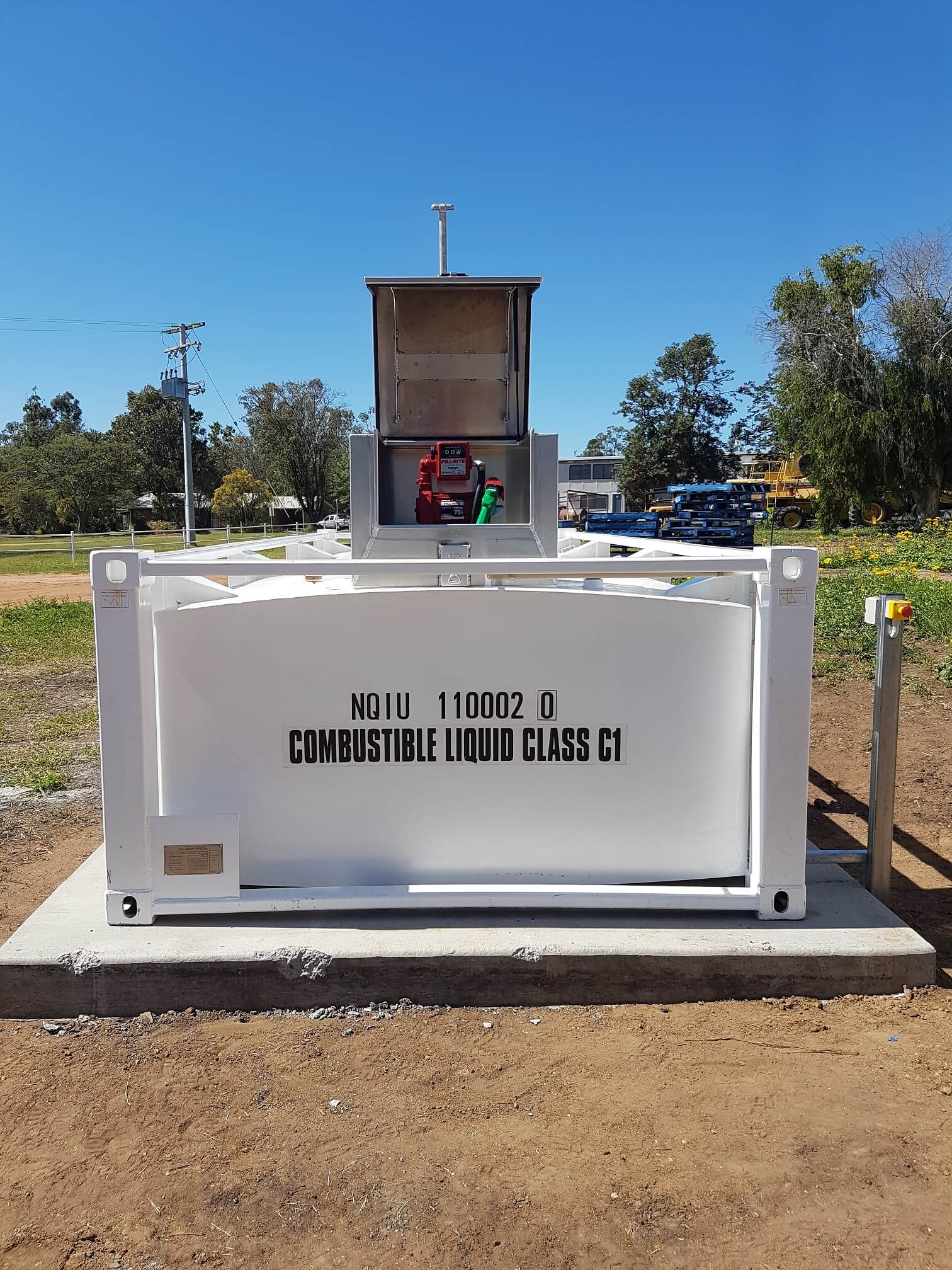

The feature of this tank is the curved roof structure that helps with all weather drainage and a leads to longer durability on the top surface of the tank. Combine this with the thickest paint finish on the market and you have a highly durable all weather tank.

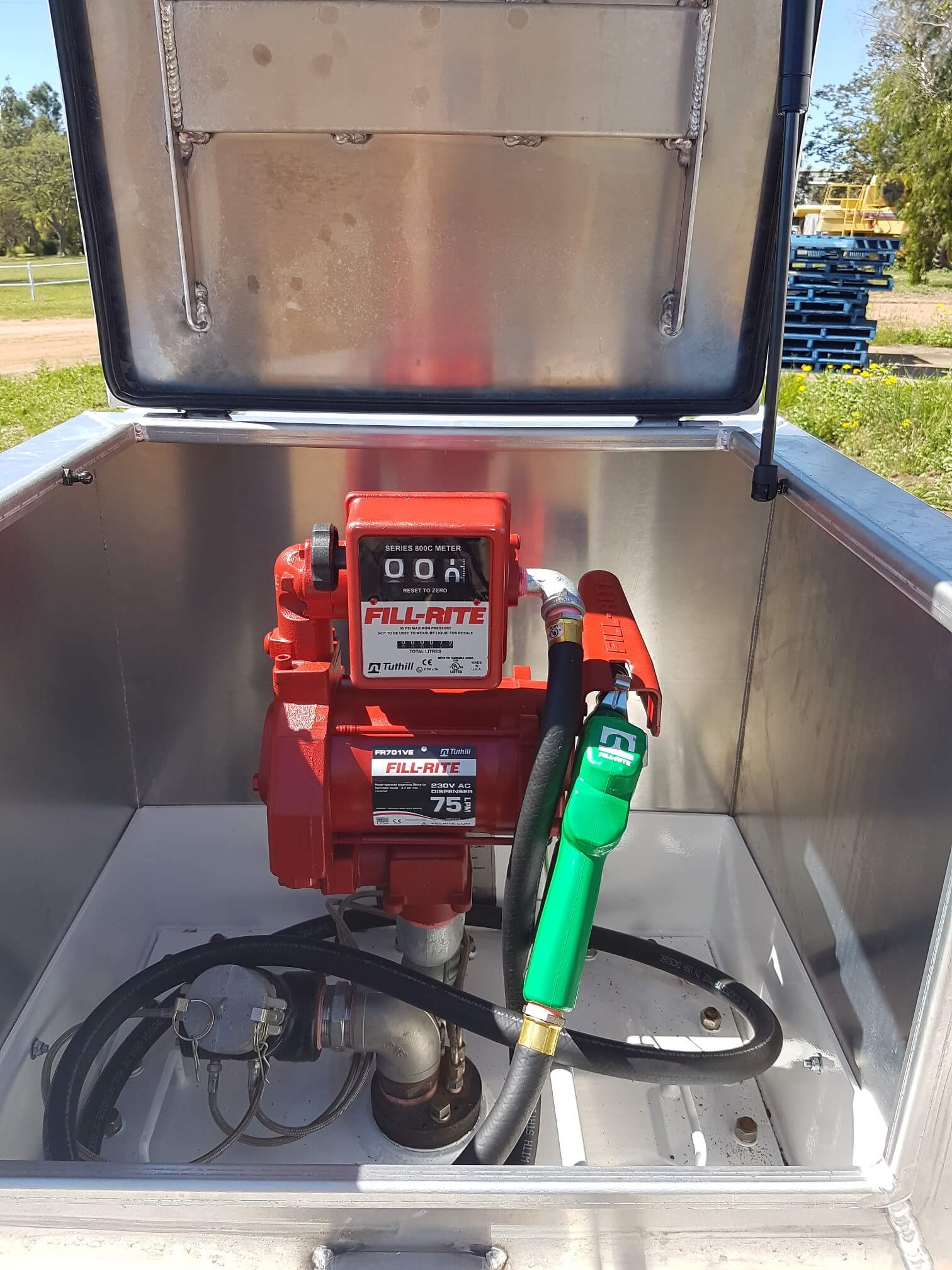

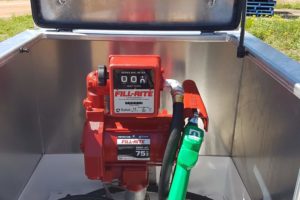

We also offer fuel management and pumping solutions that will make the whole upgrade and transition as simple as possible. Plug and pump is our motto and will have you up and refuelling in no time.

Generally we commission most of these storage tanks for diesel, but equally compatible for for petrol or heavy oil storage.

Greater volume tanks give you extra storage and options over the smaller BLOC tank ranges, thus preventing the requirement of having to be refilled regularly.

ORDER ONLINE NOW. CLICK HERE!!!

Get Pricing Now

BLOC 10,000 Tank Data

  • Gross volume - 11,500 litres
  • Safe Fill Level - 10,000 litres
  • Empty (tare) weight - 4,443kg
  • Length - 6,058mm
  • Width - 2,438mm
  • Height - 1,295mm
  • Can be stacked two high empty to maximise storage space

Portable BLOC Standard Features

  • Designed to AS 1940
  • Built to AS1692, CAT-3
  • Curved roof feature promoting surface water run-off and drainage
  • Baffled internally
  • The tanks are constructed to allow ease of transport and transfer
  • Fork lift pockets are accessible from all sides, as well as lifting eyes to each corner
  • Colour standard is white
  • 6mm Steel self bunded double-wall construction
  • Galvanized lifting lugs
  • Set of statutory signage

BLOC Tank Fittings

  • Lockable inspection chamber with gas filled support hinge
  • 1 x 2 inch Fill Port with Camlock Male Tanker hose filler c/w Dust Cap connection
  • 1 x 2 inch Fill Port with filter
  • 3 x 1.5 inch Suction Port
  • 2 x 1 inch Suction Port
  • 2 x 2 inch Suction Port
  • 2 x 1.5 inch Return Port
  • 1 x Air breather vents and fittings supplied c/w dust filter fitting
  • 2 x Anodized dipstick, one for fuel dip, one for interstitial dip
