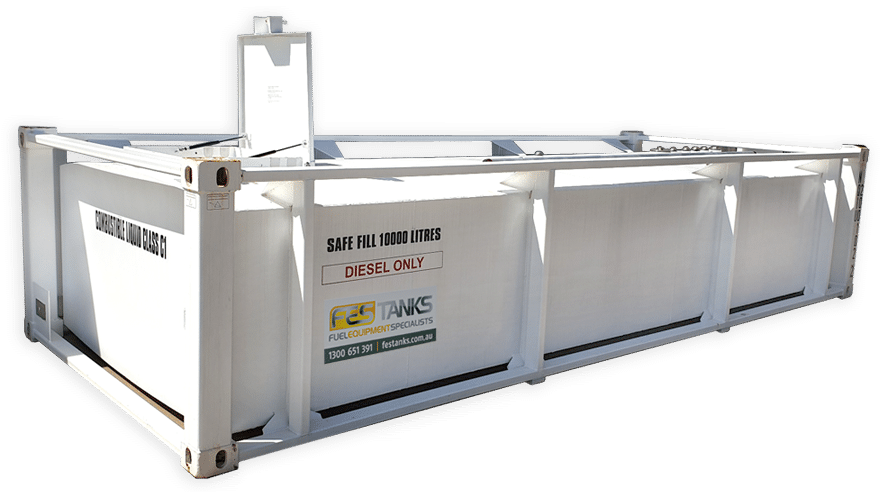

BLOC 10000
10,000L Self Bunded Fuel Storage Tank
10,000L Self Bunded Storage Tank
Diesel, Petrol or Oil Compatible
The BLOC 10000 self bunded fuel tank is the big daddy of the BLOC range and has been designed for safe storage of diesel, flammable liquids, oils and hydrocarbons up to 10,000 litres. It has a double-wall steel construction and a weather-proof design for harsh external conditions.
For operators wanting to get the competitive savings and reliability of large volume fuel storage with all the flexibility of a design and drop installation. Plug and play commissioning on site ensures this tank ticks all the boxes.
The curved roof structure helps with all-weather drainage for longer durability on the top surface of the tank, minimising risk of corrosion and the associated fuel leaks and spoilage. Combine this with the thickest paint finish on the market and you have a highly durable all-weather fuel storage tank that can be transported to new worksite locations as needs change.
The BLOC 10000 is typically used for high volume diesel storage but is equally compatible for petrol or heavy oil.
Greater volume tanks give you extra storage and options over the smaller BLOC tank ranges, thus preventing the requirement of having to be refilled regularly.

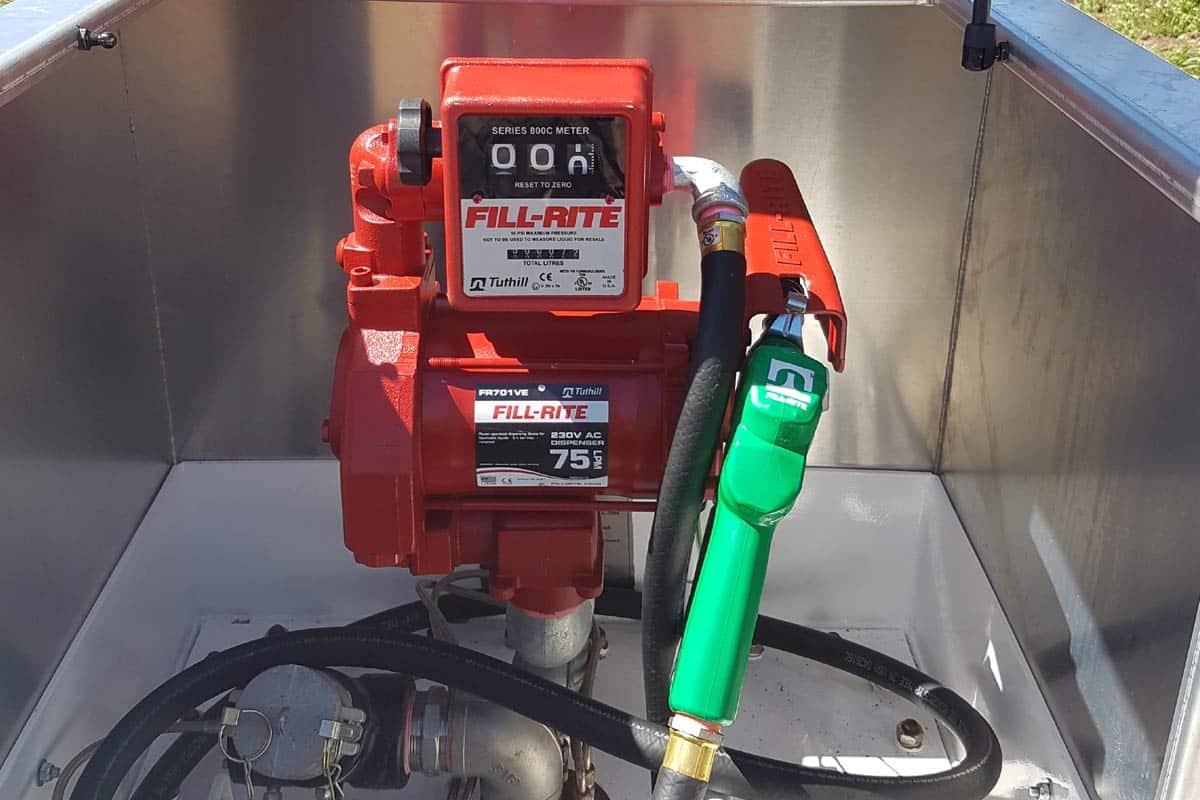

Our fuel equipment specialists will help with fuel management and pumping solutions to make installation and transition as simple as possible. Plug and pump is our motto and will have you up and refuelling in no time.
Standards & Warranties
We created our unique range of self bunded tanks to comply with all aspects of aboveground fuel storage tanks regulations and compliance so you don’t have to.
BLOC 10000 Tank Data
- Gross volume - 11,500 litres
- Safe Fill Level - 10,000 litres
- Empty (tare) weight - 4,443 kg
- Length - 6,058 mm
- Width - 2,438 mm
- Height - 1,295 mm

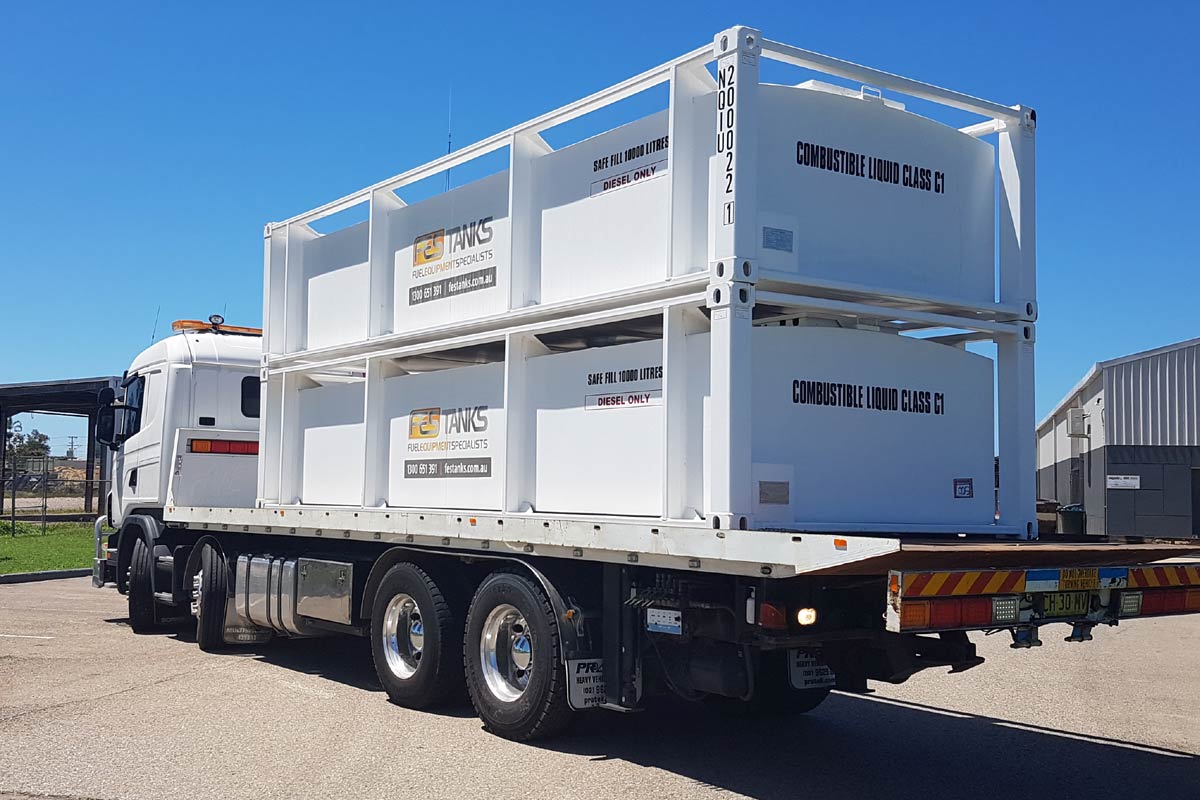

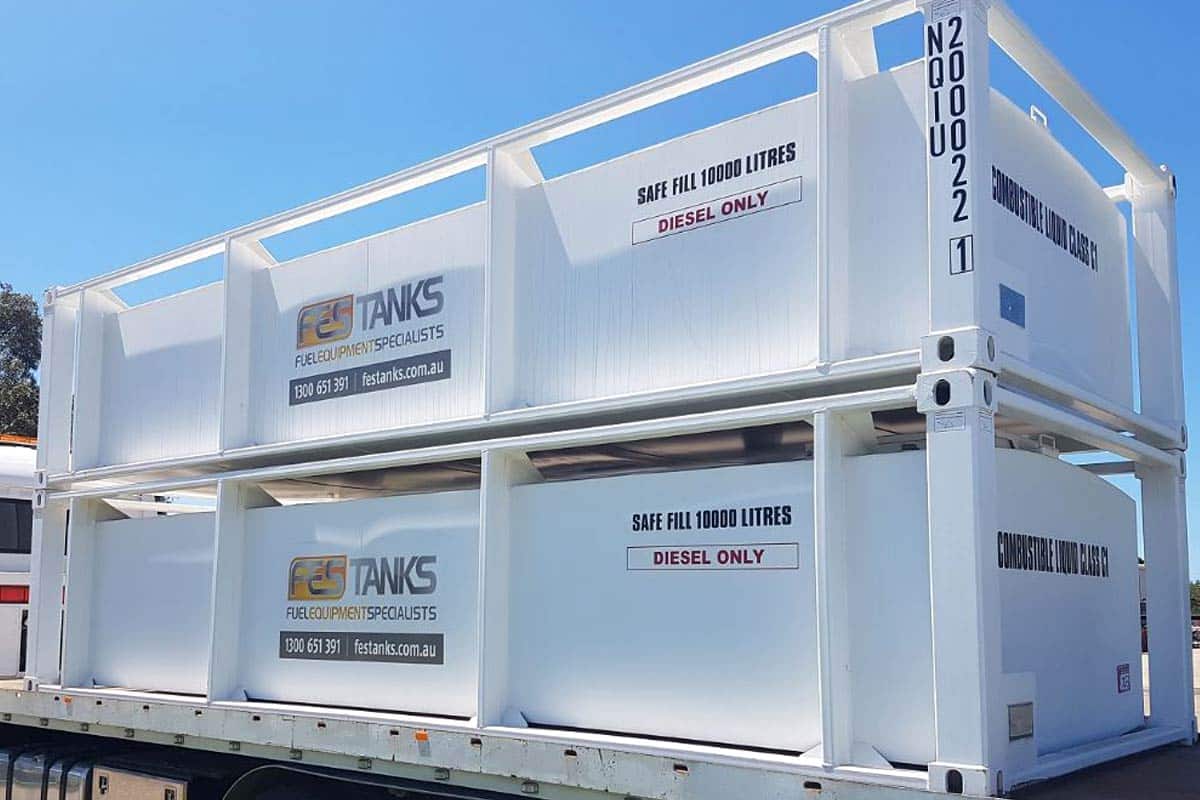

- Tanks can be stacked four high empty, and two high full to maximise storage space
Fuel Storage Compatibility
- Diesel
- Flammable Liquids
- Kerosene
- Lubricants
BLOC Standard Features
- Mobile and modular self-bunded fuel storage tank
- Double-walled construction consisting of:
- 5 mm Inner primary steel tank
- 5 mm Outer secondary steel tank
- Curved roof feature for water drainage to top of tank*
- Accessible and removable tank manway for internal tank maintenance and cleaning
- Complete with aluminium gauged dipsticks, 1 x galvanized updraft vent breather system and multiple port fittings
- Sectional cut-outs on sides of spill box to allow flexible hoses or pipework to external requirements (i.e. generators)
- Designed to AS 1940, UL142 and ULC-S601
- Built to AS1692, CAT-3
- Baffled internally
- Practical design allows for ease of transportation
- Certified tie down/lifting points at each corner
- 250 - 300 micron thickness ‘WHITE’ paint finish as standard (Other colour options are available upon request)
- Combustible liquid safety labels and decals supplied as standard
- Air tested and hydrostatic tested prior to leaving our factory

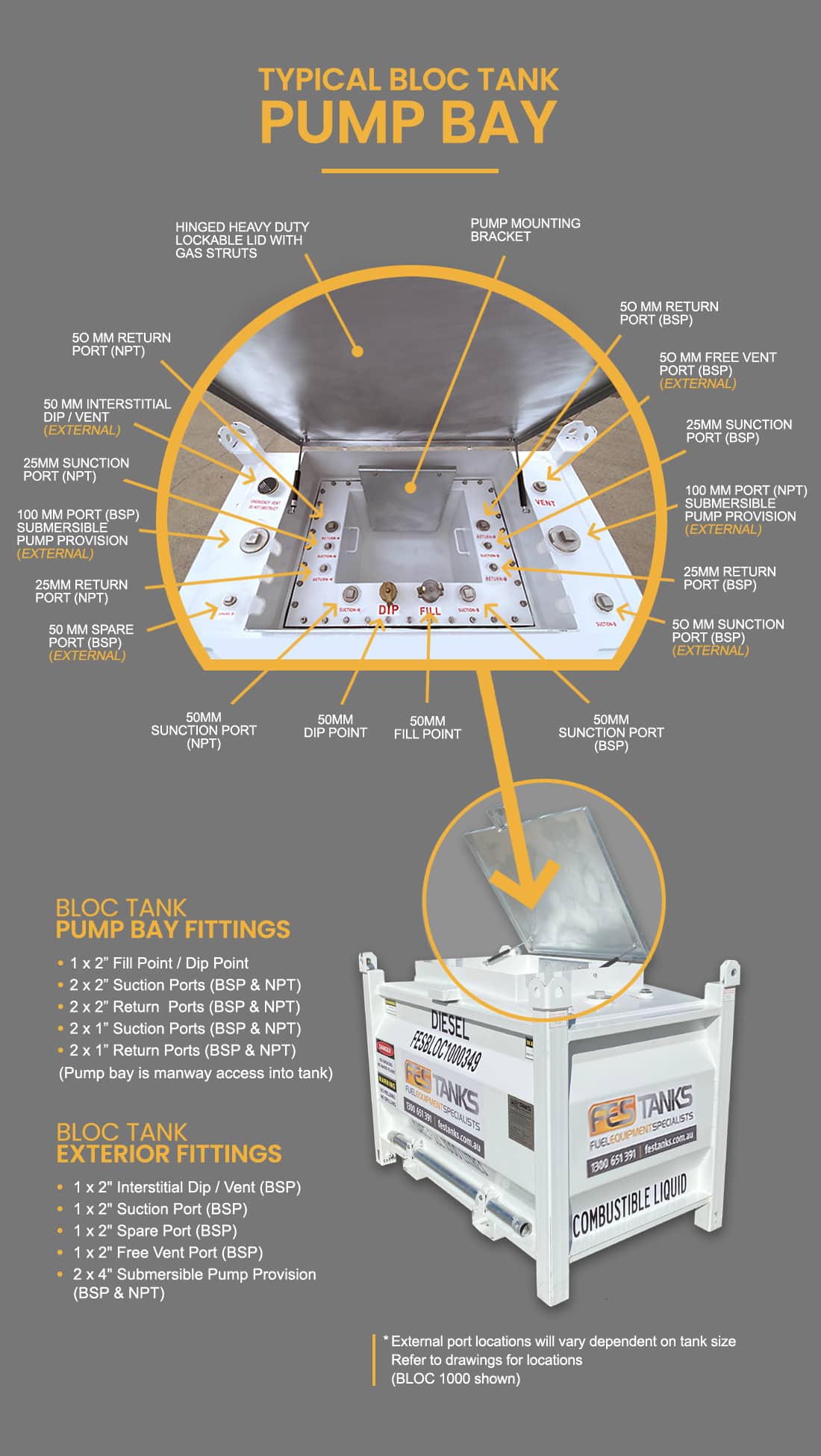

Interior Fittings
- 1 x 2” Interstitial Dip / Vent
- 1 x 2” Suction Port
- 1 x 2” Spare Port
- 2 x 4” Submersible Pump Provision
- 1 x 2” Free Vent Port
Manway Fittings
- 1 x 2” Fill Point / Dip Point
- 2 x 2” Suction Ports
- 2 x 2” Return Ports
- 2 x 1” Suction Ports
- 2 x 1” Return Ports
F.E.S. TANKS Warranty
- 10 year Structural Warranty
- 2 Year Manufacturer Warranty (Tank Components)
- 2 Year Paint Warranty
Watch the video
Related Industries
- Farming and Agriculture
- Trucking, Freight and Logistics
- Mining and Metals
- Oil, Gas and Energy
- Fleet Management

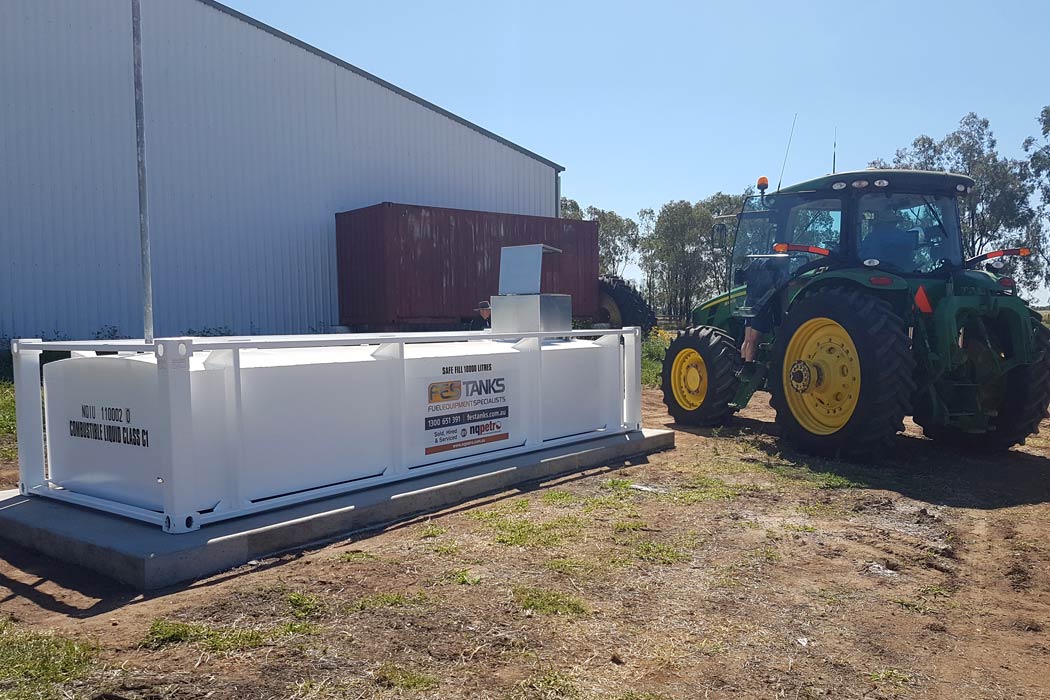

10,000L Self Bunded Fuel Storage Tank Photo Gallery
