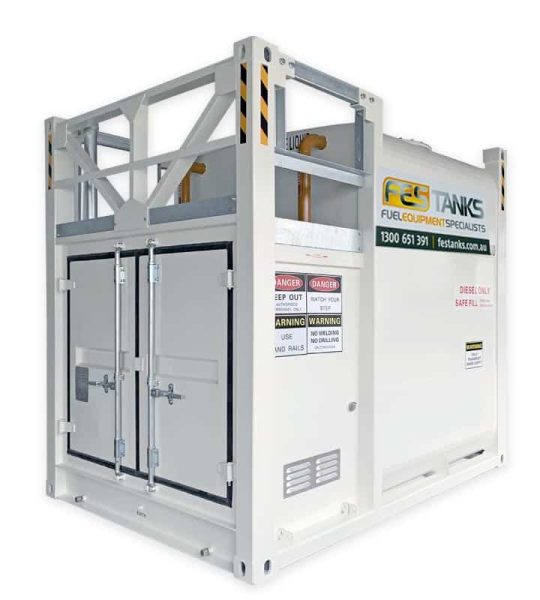

GRANDE 12

12,000L Aboveground Fuel Storage Tank

Diesel, Petrol or Oil Compatible

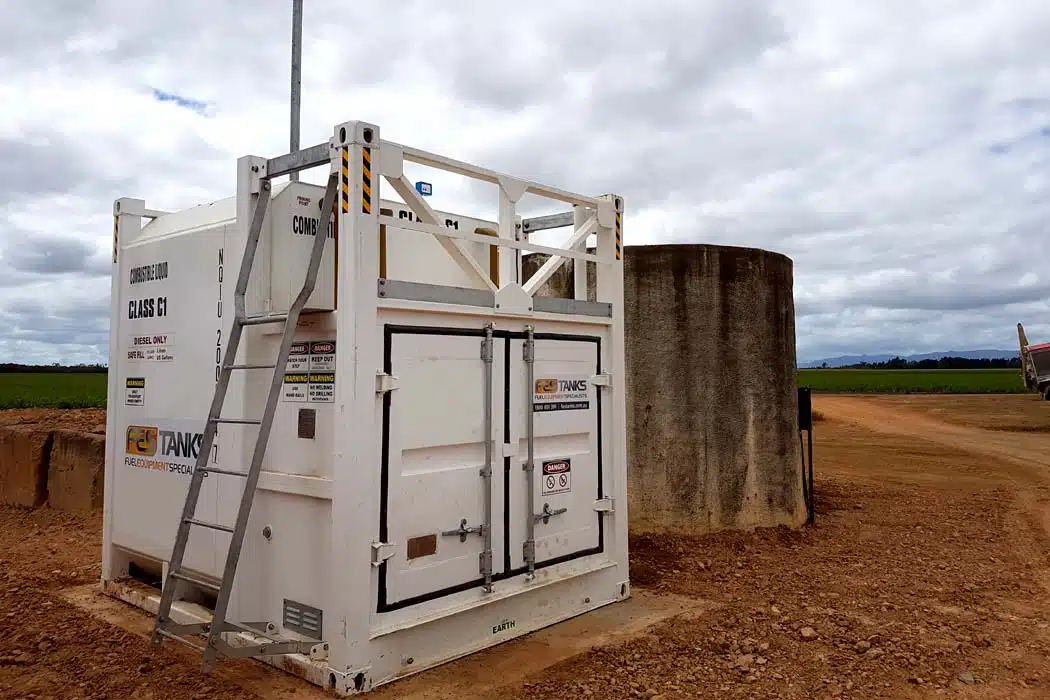

The GRANDE 12 aboveground self-bunded fuel tank has been designed for the safe storage of diesel, flammable liquids, oils and hydrocarbons up to 12,000 litres.

The GRANDE 12 is the baby of our GRANDE aboveground storage tank range but still perfect for the operator who is limited on space but still looking for the efficiencies of higher fuel storage and dispensing capabilities.

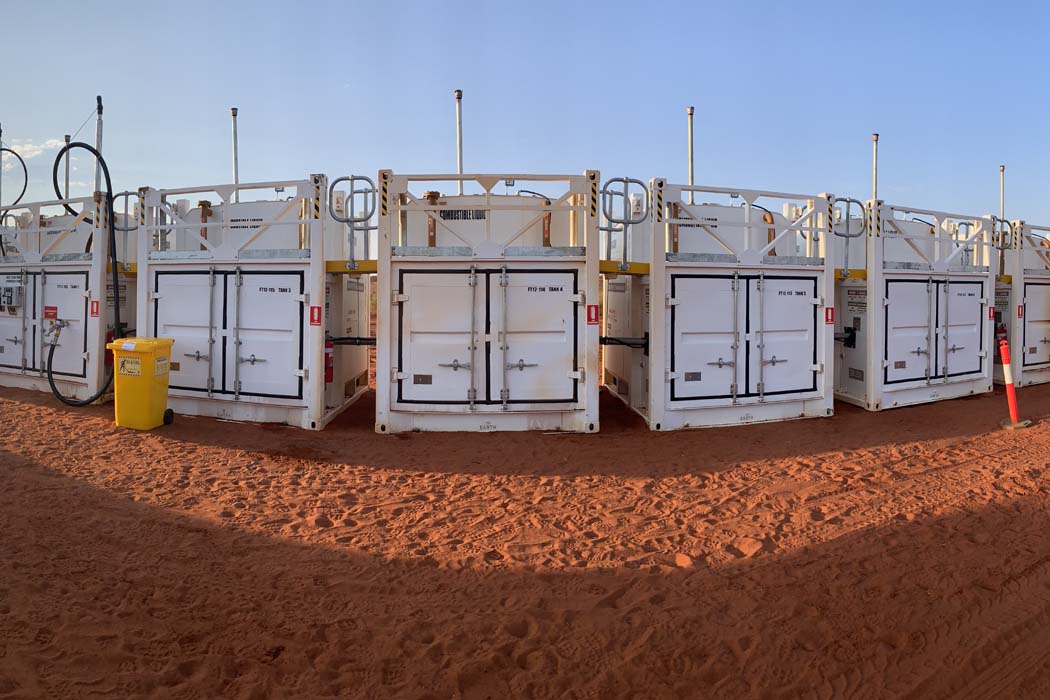

With a modular design and double-walled steel construction, this compact storage tank is a popular choice for remote refuelling. The GRANDE 12 tank complies with Australian Standards for the Storage and Handling of Flammable and Combustible Liquids whilst eliminating the need for costly concrete containment areas and site preparation work. Why not lay down multiple tanks in series to create a bulk fuel farm.

Designed for easy and convenient installation, it is fully equipped with internal and fill point pipework and comes standard with ISO container style corner casings for trouble-free transportation. Securely bolted doors open on to a fully self-contained bunded area for safe, measured fuel dispensing and filling.

For operators working in remote areas looking for a flexible high volume fuel storage option, this tank offers a cost-effective and fully compliant solution – just dropship into place, connect to mains power or solar, fill and go.

The GRANDE 12 comes in a variety of colours, coatings and custom dimensions. Refuelling packages can be tailored to suit all applications.

Ask our fuel experts to show you how the GRANDE 12 can improve your fuel logistics and drive down overheads for your business.

Standards & Warranties

We created our unique range of self bunded tanks to comply with all aspects of aboveground fuel storage tanks regulations and compliance so you don’t have to.

GRANDE 12 Tank Data

Gross volume - 11,839 litres
Safe Fill Level - 11,240 litres
Empty (tare) weight – 4,825 kg
Length – 2,991 mm
Width – 2,438 mm
Height - 2,896 mm

Fuel Storage Compatibility

GRANDE Standard Features*

Aboveground modular ISO containerised self-bunded fuel storage tank design and constructed to AS1940, AS1692, AS1657, UL142 and ULC-S601-14 compliance as standard.

Double-walled construction consisting of:
6 mm Inner primary steel tank
6 mm Outer secondary steel tank
Lockable self-contained pump bay and dispensing area to front of the tank
Curved roof feature for water drainage to top of tank*
Extra paint thickness based on 250-300 microns for extra protection during harsh climates
Supplied with all statutory signage.
In-built tank access ladder and platform
Dual 2" manway tank access points
Updraft vent pipe
Aluminum anodized dipstick
Interstitial space monitoring point with anodized dip stick
Audible overfill protection alarm
6” and 4 “sockets for installation of submersible pumps
Bunded cowling and dispensing area

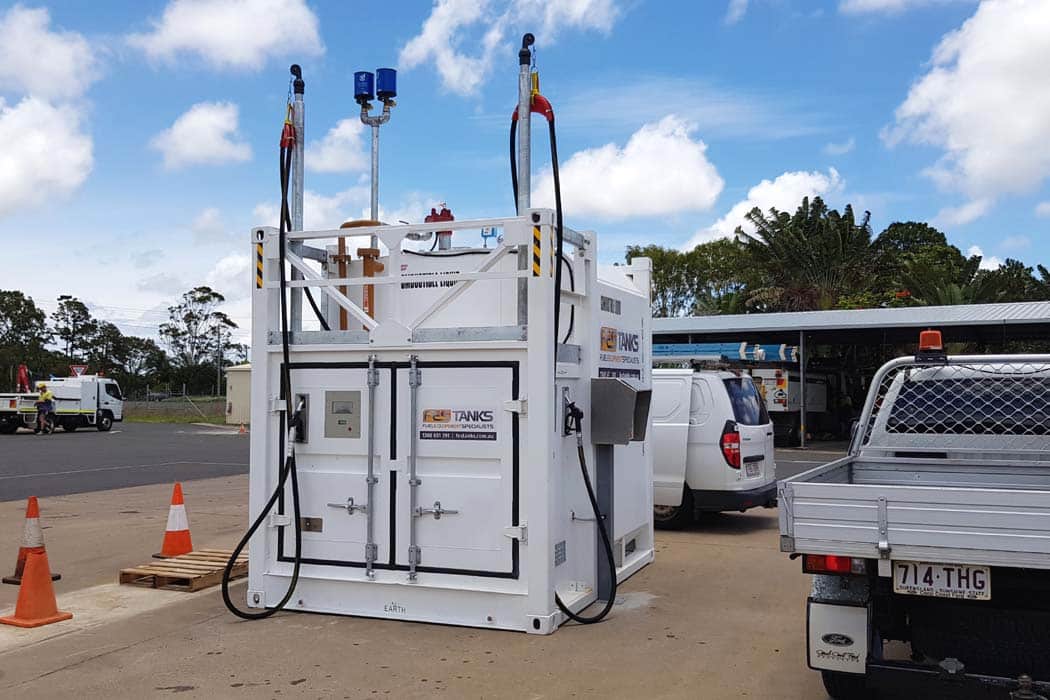

Dual hose high mast retractable units
Suitable for fuel farm configuration (master and slave)
Transportable via tilt tray or flatbed semi-trailer
250 - 300 micron thickness ‘WHITE’ paint finish as standard (Other colour options are available upon request)

*Standard product specification and fitting arrangement may change as products evolve.

Incoming Fuel / Product

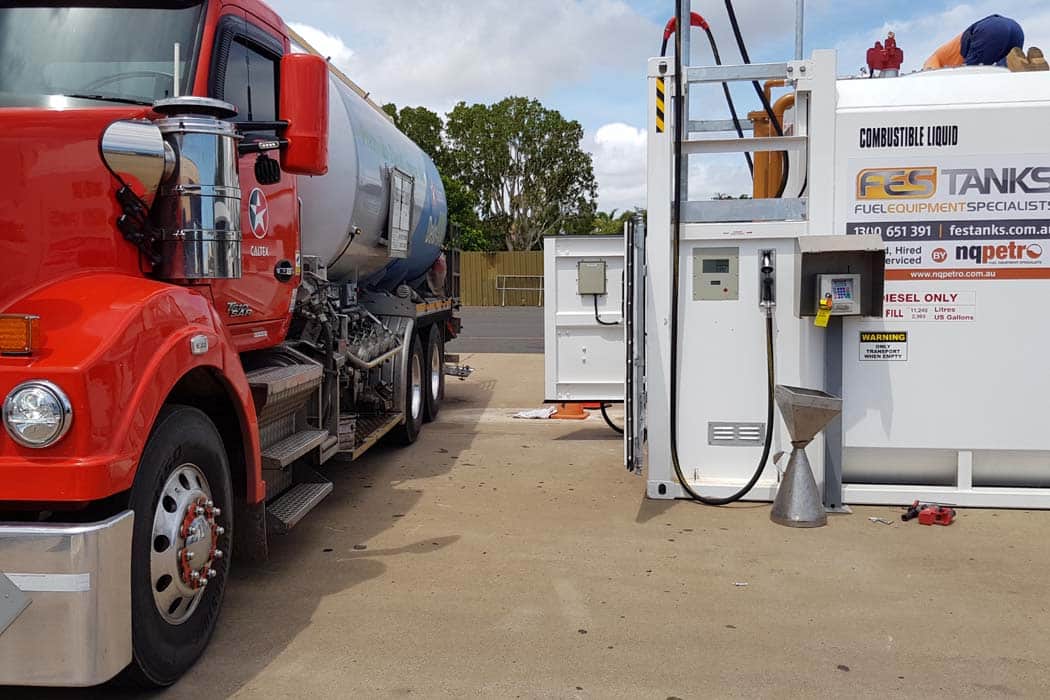

80nb Tanker fill pipework
Fire safe flanged ball valve, camlock adaptor & cap
Non return valve
Hydraulic overfill valve with optional unload pump
Internal pipe work serviceable
High level alarm; hazardous rated & battery powered

Outgoing Fuel / Product

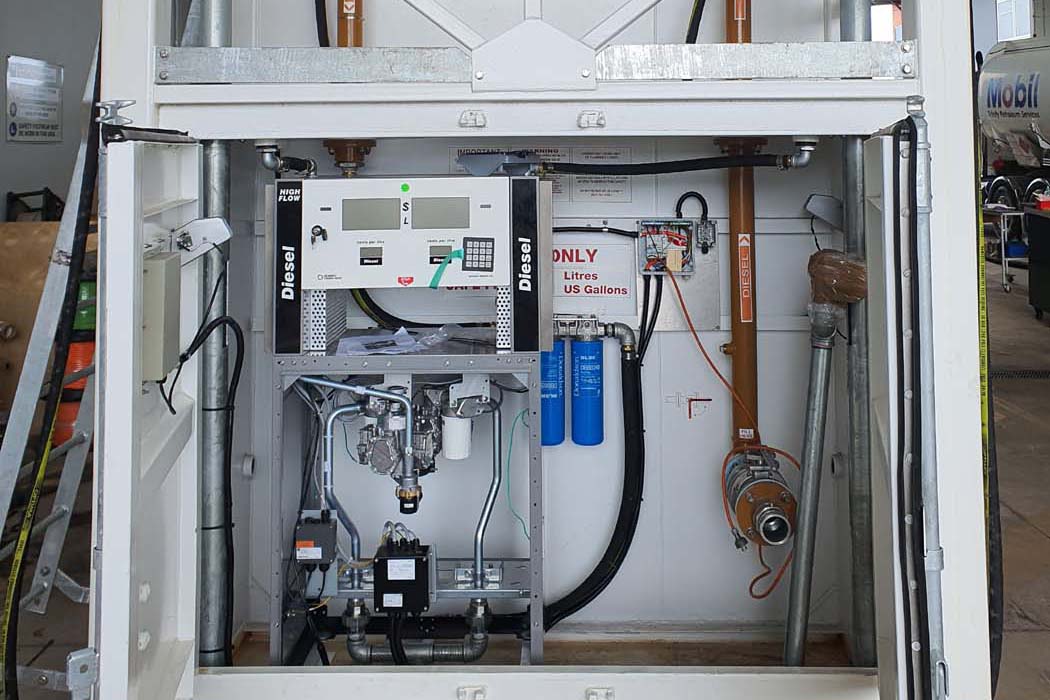

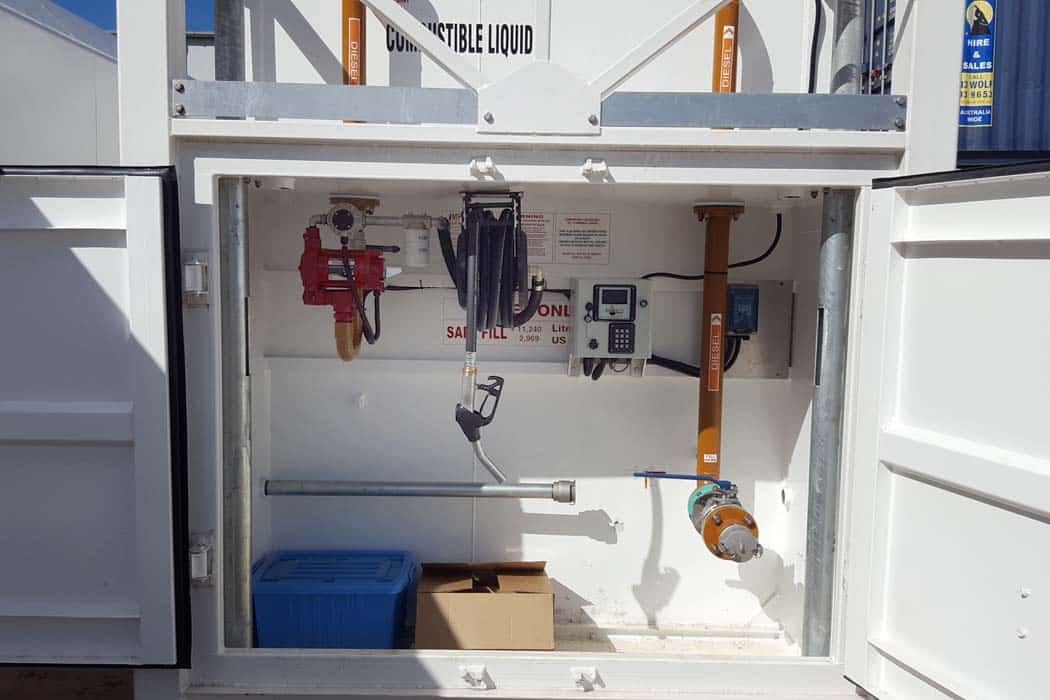

Pump Bay

Pump bay complete with water/product drain valves
Internal access for hoses from pylon kits
Pylon kits with counter weights (optional)
Lockable bund doors with rubber dust seal
Access ladder to work platform mounted on left or right hand side
Bund ventilation
Built in safety handrail system
Dual 50mm side wall cavity sockets
