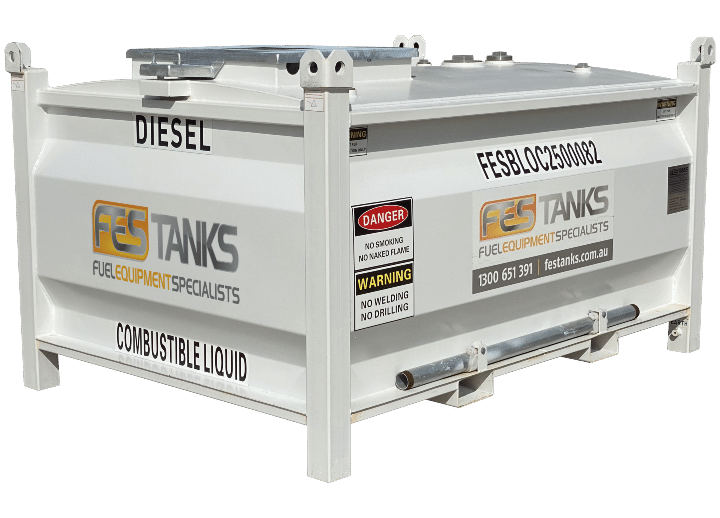

BLOC 2500
2,500L Self Bunded Fuel Storage Tank
2,500L Self Bunded Storage Tank
Diesel, Petrol or Oil Compatible
The BLOC 2500 self bunded fuel tank is designed for safe storage of diesel, flammable liquids, oils and hydrocarbons up to 2,500 litres. It has a double-wall steel construction and a weather-proof design for harsh external conditions.
For operators wanting to get the competitive savings and reliability of large volume fuel storage with all the flexibility of a design and drop installation. Plug and play commissioning on site ensures this tank ticks all the boxes.
Ideal for the small operator looking for a more versatile lower volume fuel storage alternative.
A mobile and modular fuel storage tank that has practical applications as a day tank to run a generator or in combination with fuel dispensing equipment. It’s universal appeal has seen it working in depots as well as isolated locations in multiple industries.
A practical option is to pair with a larger storage unit from our Grande tank range, it’s designed to be stackable and transportable to meet changing worksite needs.
Our fuel equipment specialists will help with fuel management and pumping solutions to make installation and transition as simple as possible. Plug and pump is our motto and will have you up and refuelling in no time.
Standards & Warranties
We created our unique range of self bunded tanks to comply with all aspects of aboveground fuel storage tanks regulations and compliance so you don’t have to.
BLOC 2500 Tank Data
- Gross volume – 2,684 litres
- Safe Fill Level – 2,500 litres
- Empty (tare) weight – 1,280 kg
- Length – 2,274 mm
- Width – 1,674 mm
- Height – 1,309 mm
- Tanks can be stacked four high empty, and two high full to maximise storage space
Fuel Storage Compatibility
- Diesel
- Flammable Liquids
- Kerosene
- Lubricants
BLOC Standard Features*
- Mobile and modular self-bunded fuel storage tank
- Double-walled construction consisting of:
- 5 mm Inner primary steel tank
- 3 mm Outer secondary steel tank
- Curved roof feature for water drainage to top of tank*
- Accessible and removable tank manway for internal tank maintenance and cleaning
- Complete with aluminium gauged dipsticks, 1 x galvanized updraft vent breather system and multiple port fittings
- Sectional cut-outs on sides of spill box to allow flexible hoses or pipework to external requirements (i.e. generators)
- Designed to AS 1940, UL142 and ULC-S601
- Built to AS1692, CAT-3
- Baffled internally. UN31AY approved
- Practical design allows for ease of transportation
- Forklift pockets
- Certified tie down/lifting points at each corner
- 250 - 300 micron thickness ‘WHITE’ paint finish as standard (Other colour options are available upon request)
- Combustible liquid safety labels and decals supplied as standard
- Air tested and hydrostatic tested prior to leaving our factory
*Standard product specification and fitting arrangement may change as products evolve.

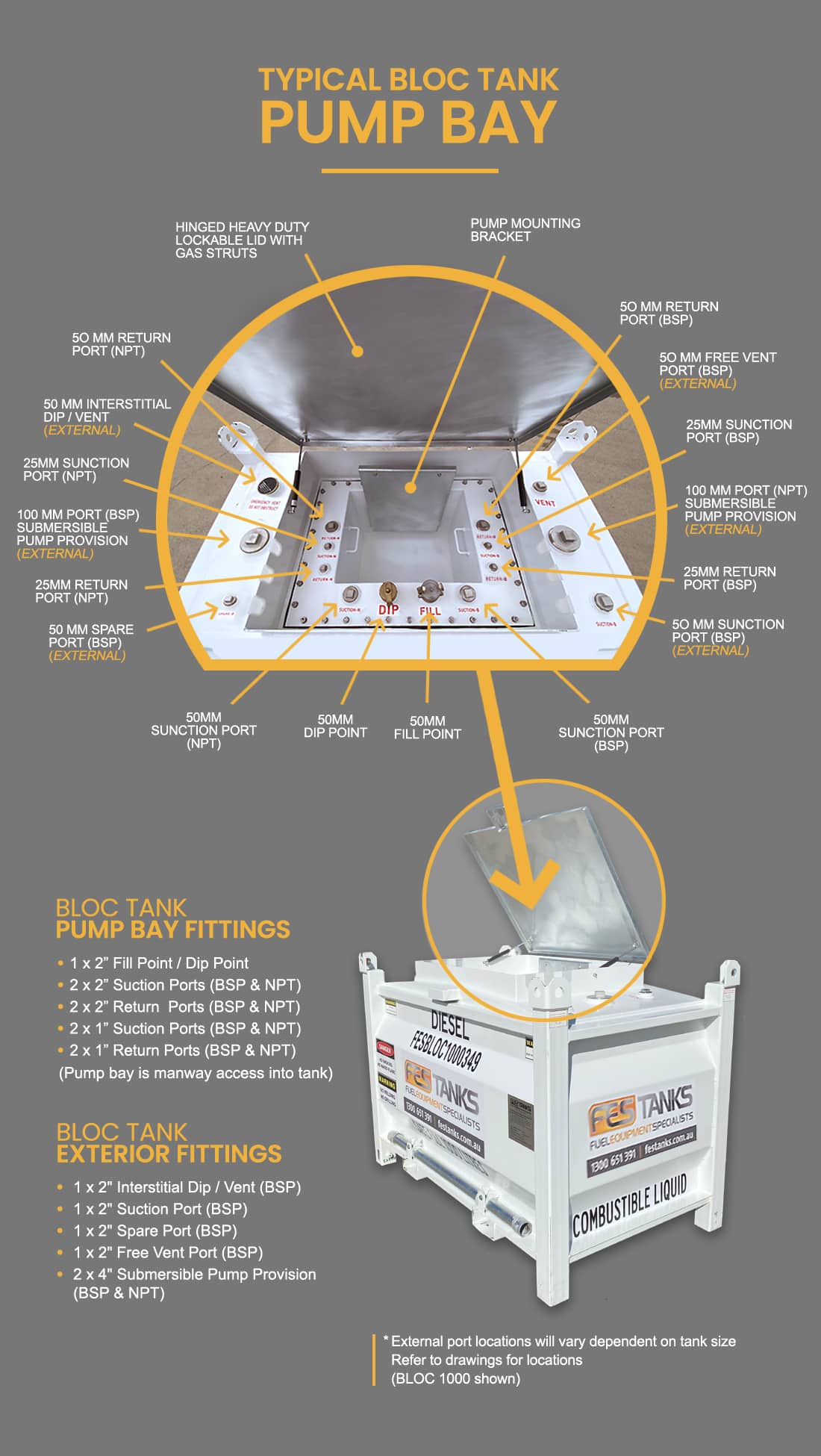

Exterior Fittings
- 1 x 2” Interstitial Dip / Vent
- 1 x 2” Suction Port (BSP)
- 1 x 2” Spare Port
- 2 x 4” Submersible Pump Provision (BSP & NPT)
- 1 x 2” Free Vent Port

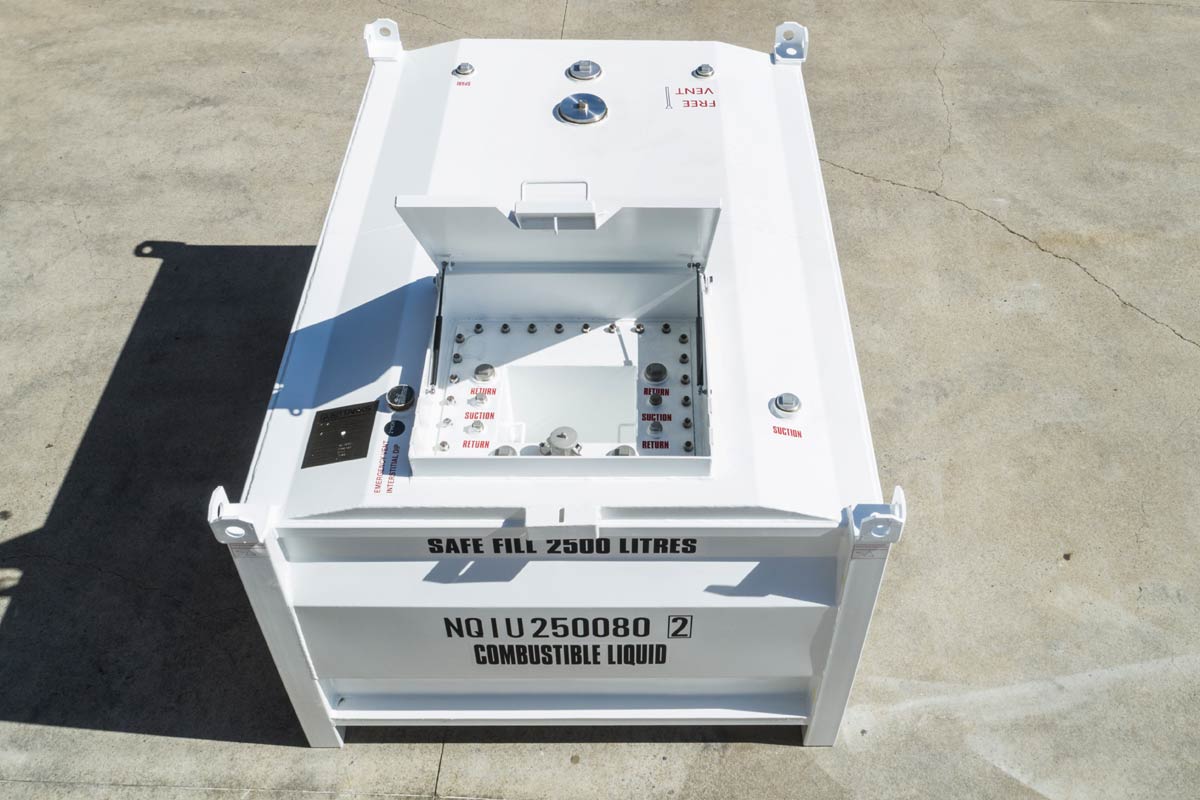

Manway Fittings (inside lid)
- 1 x 2” Fill Point
- 1 x 2” Dip Point
- 2 x 2” Suction Ports (BSP & NPT)
- 2 x 2” Return Ports (BSP & NPT)
- 2 x 1” Suction Ports (BSP & NPT)
- 2 x 1” Return Ports (BSP & NPT)
F.E.S. TANKS Warranty
- 10 year Structural Warranty
- 2 Year Manufacturer Warranty (Tank Components)
- 2 Year Paint Warranty
Watch the video

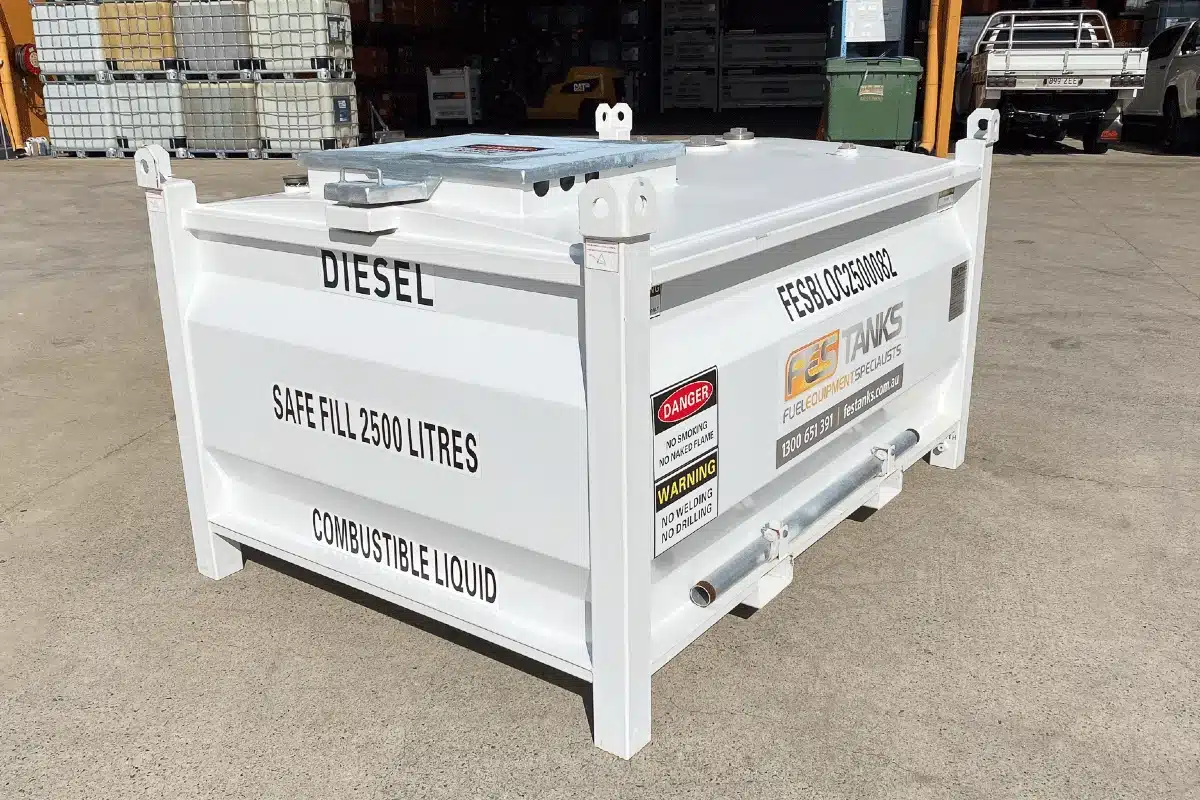

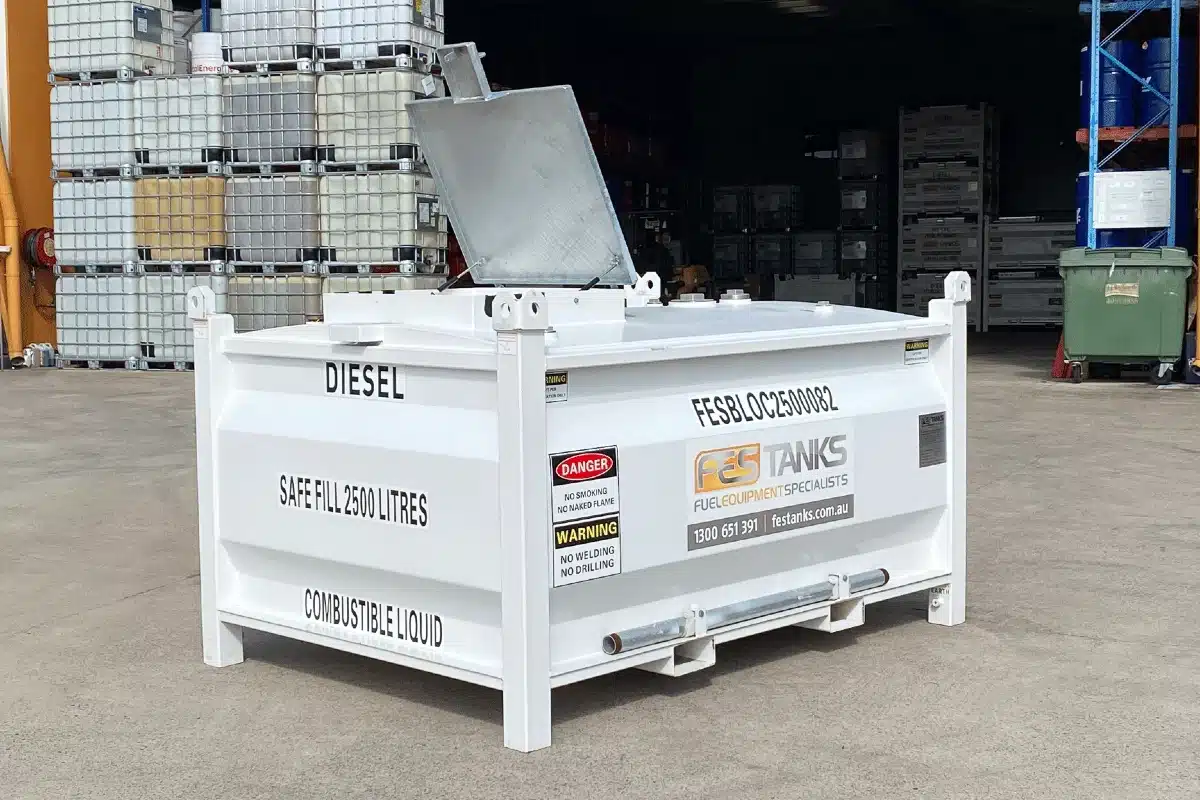

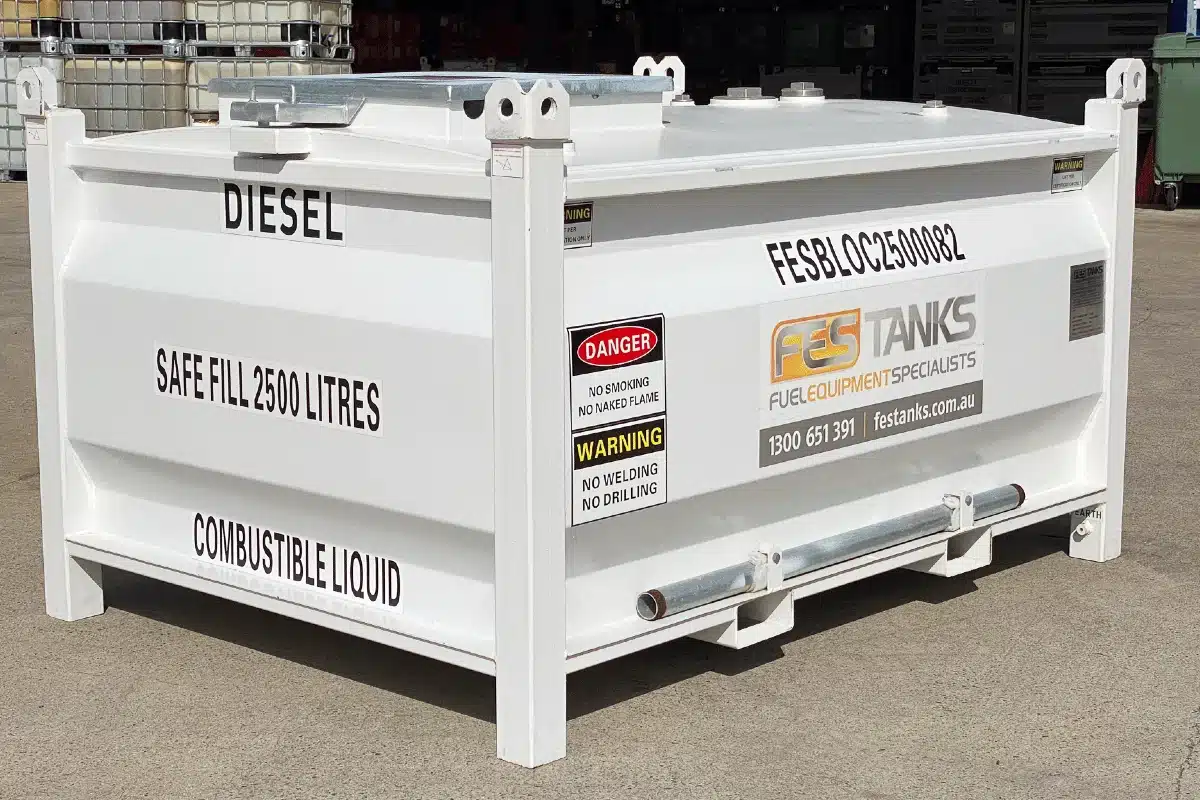

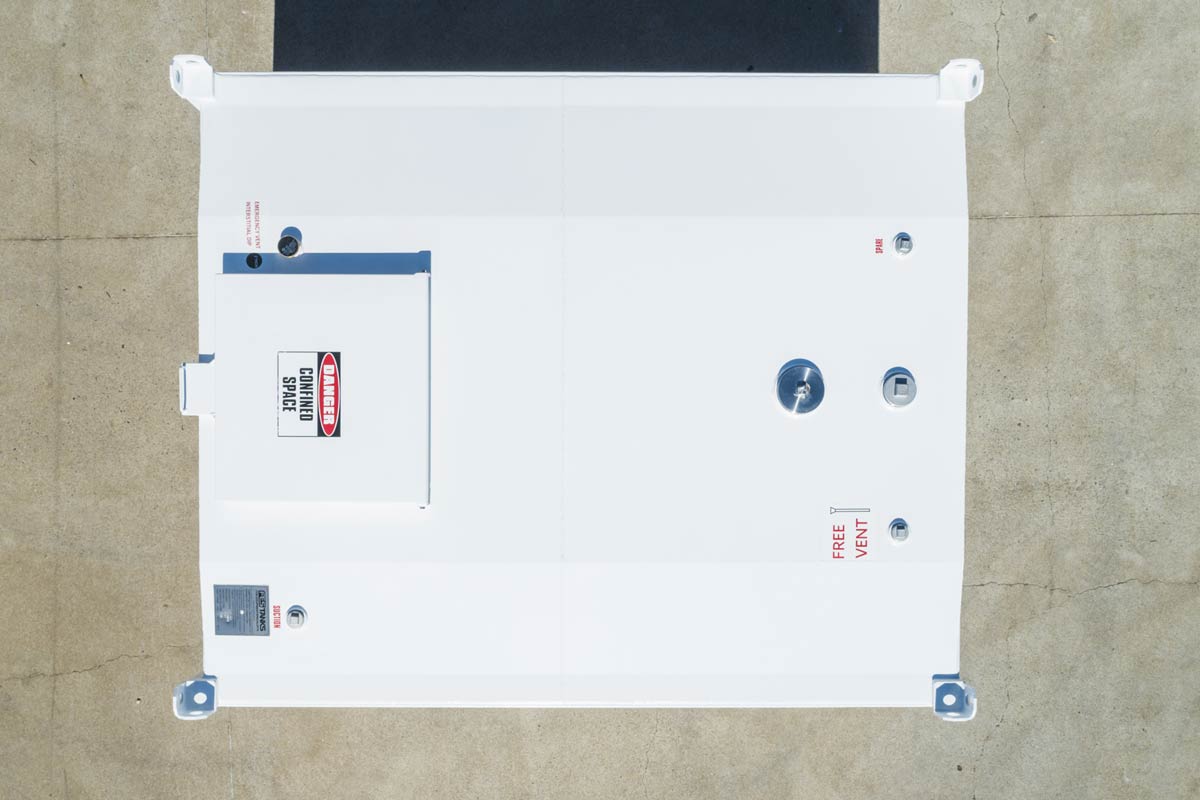

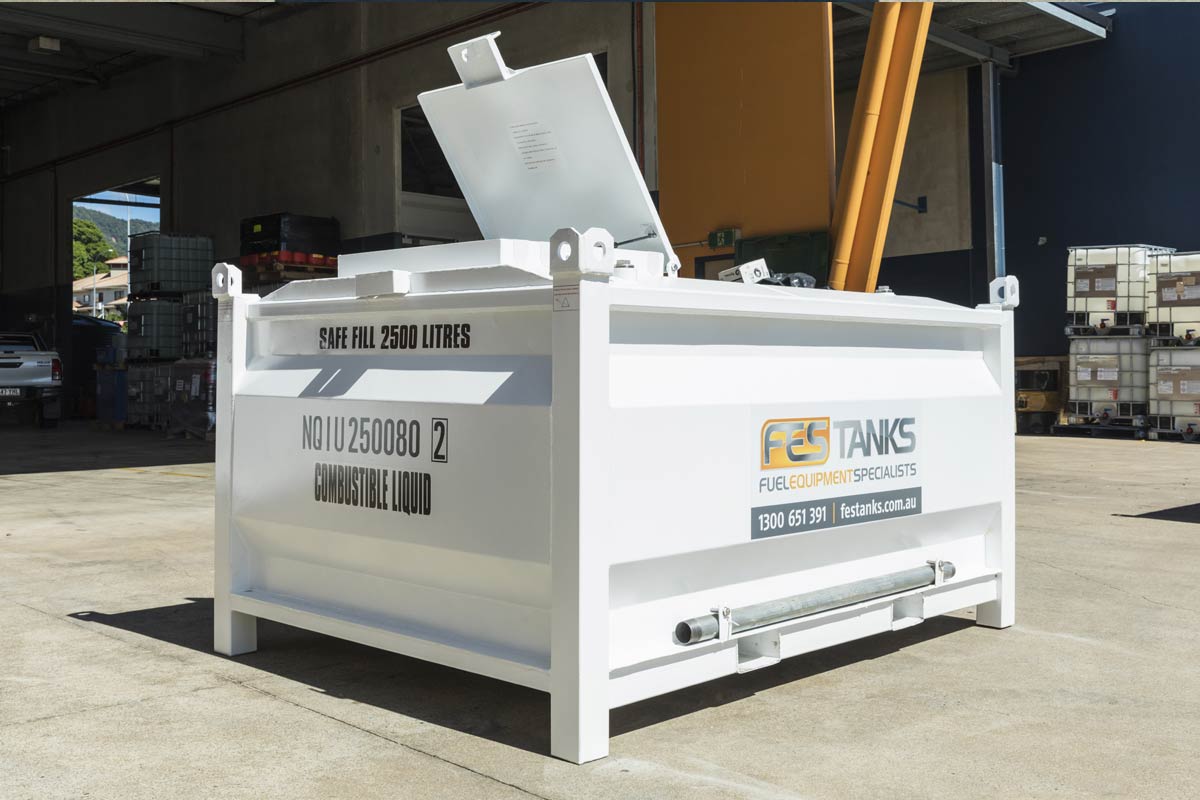

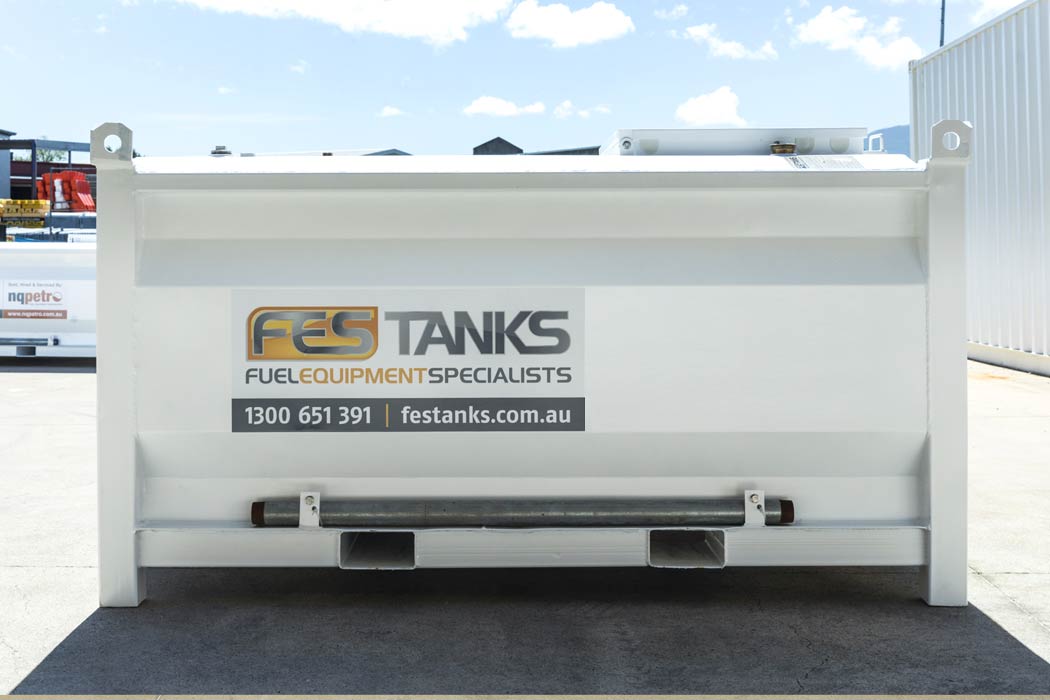

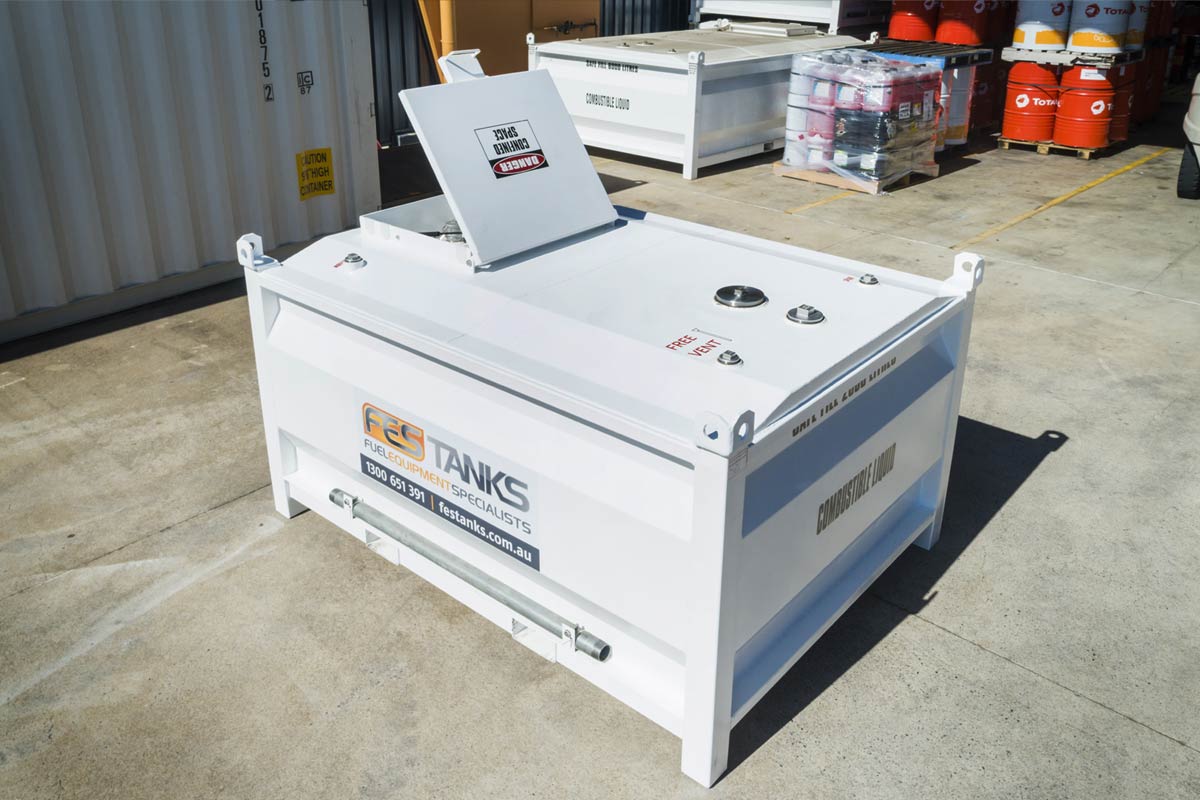

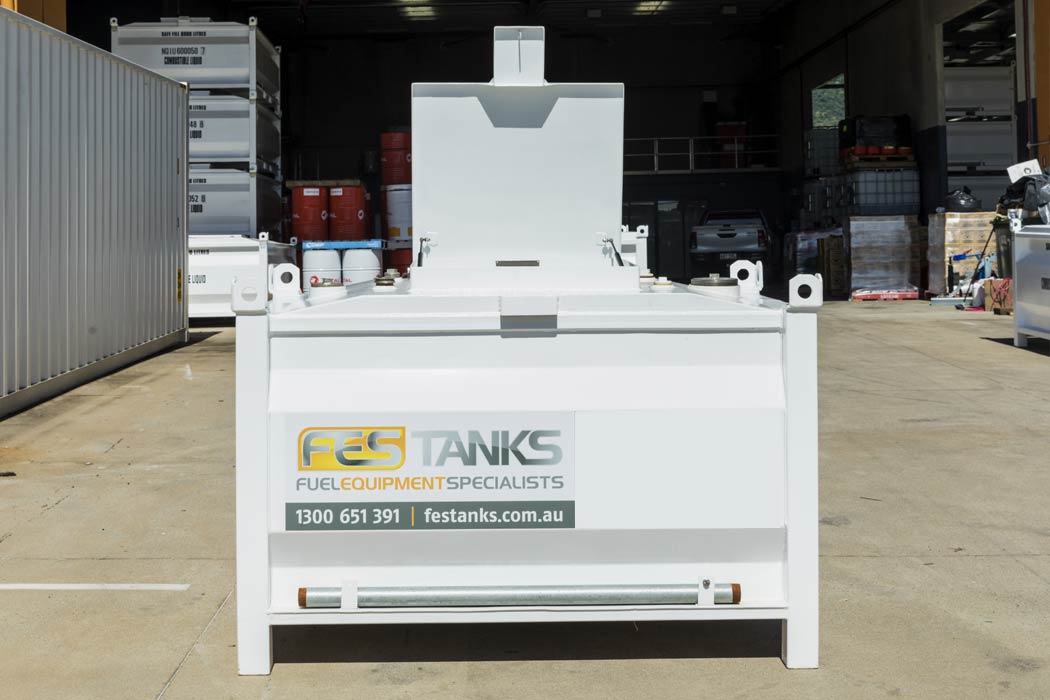

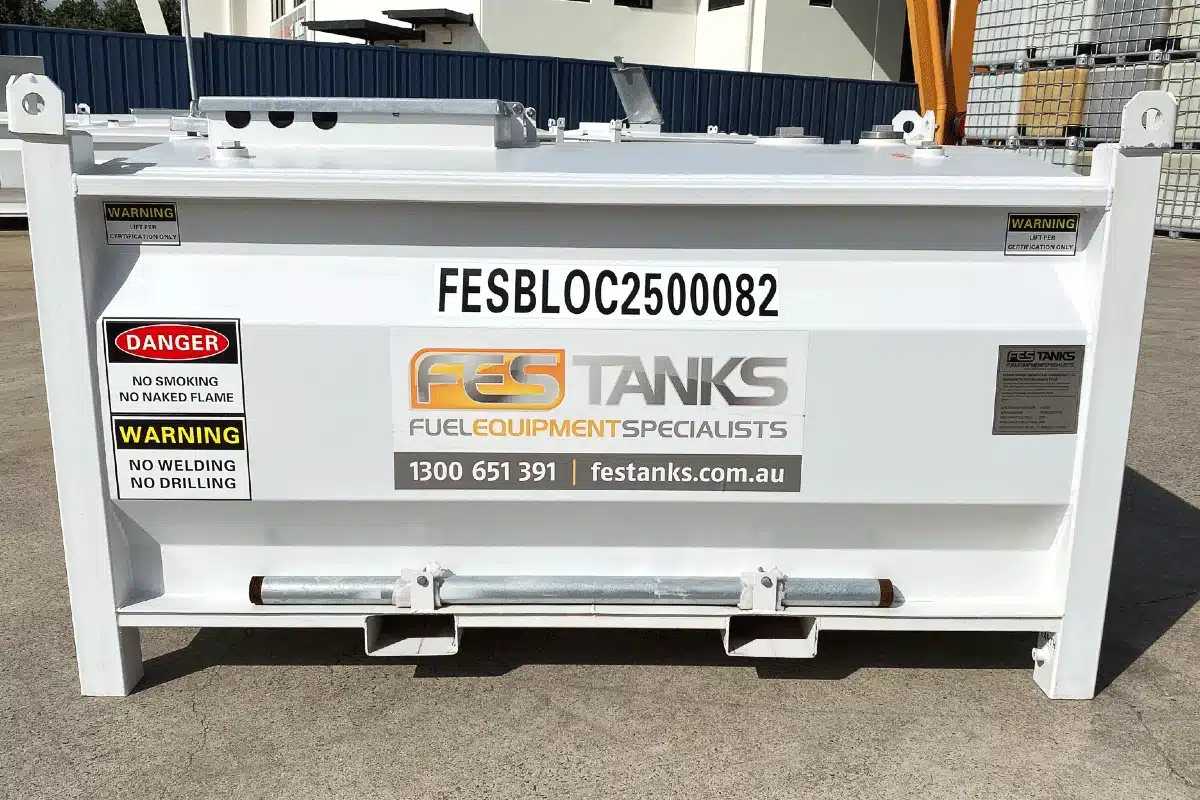

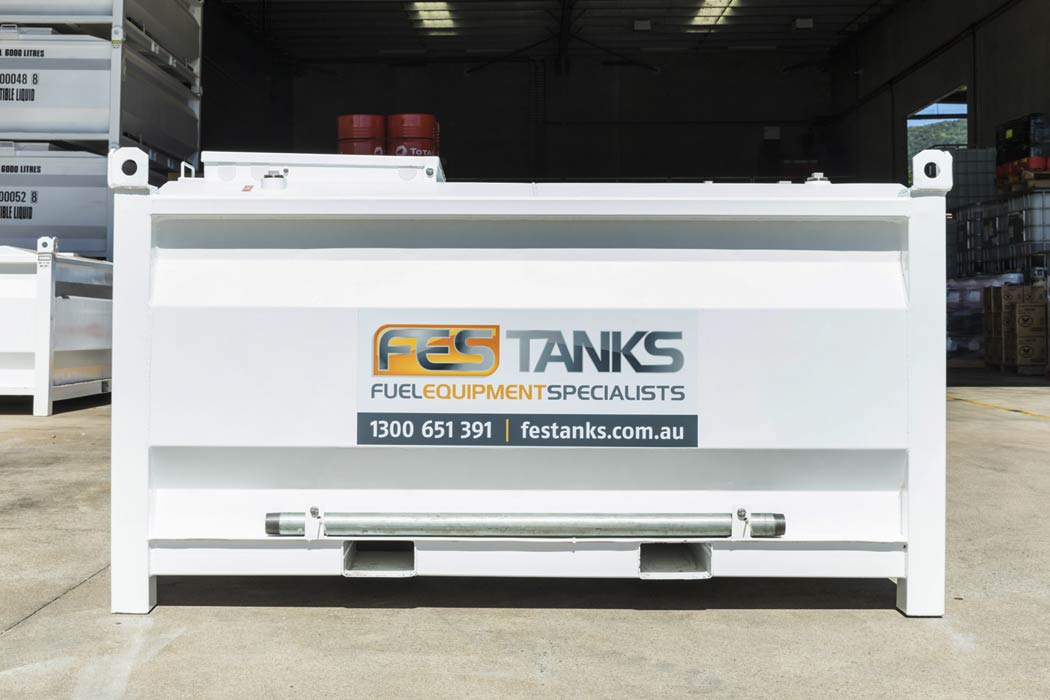

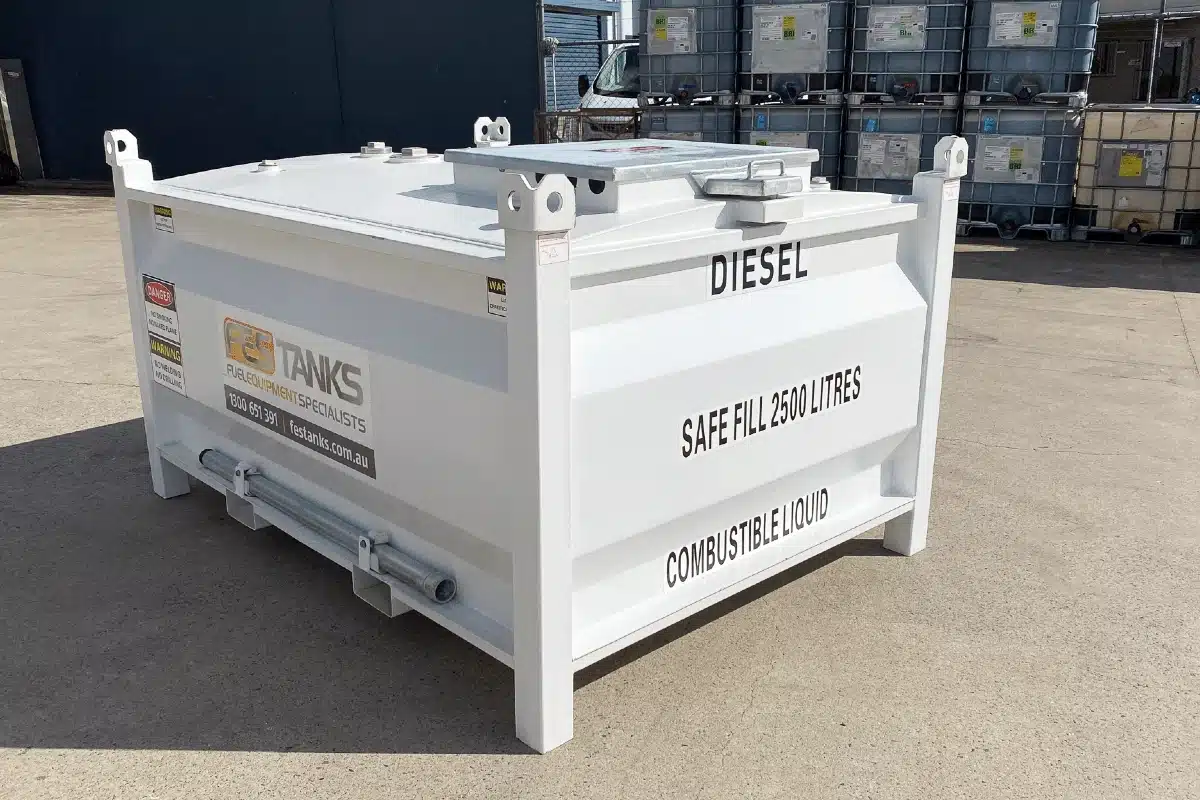

2,500L Self Bunded Fuel Storage Tank Photo Gallery
