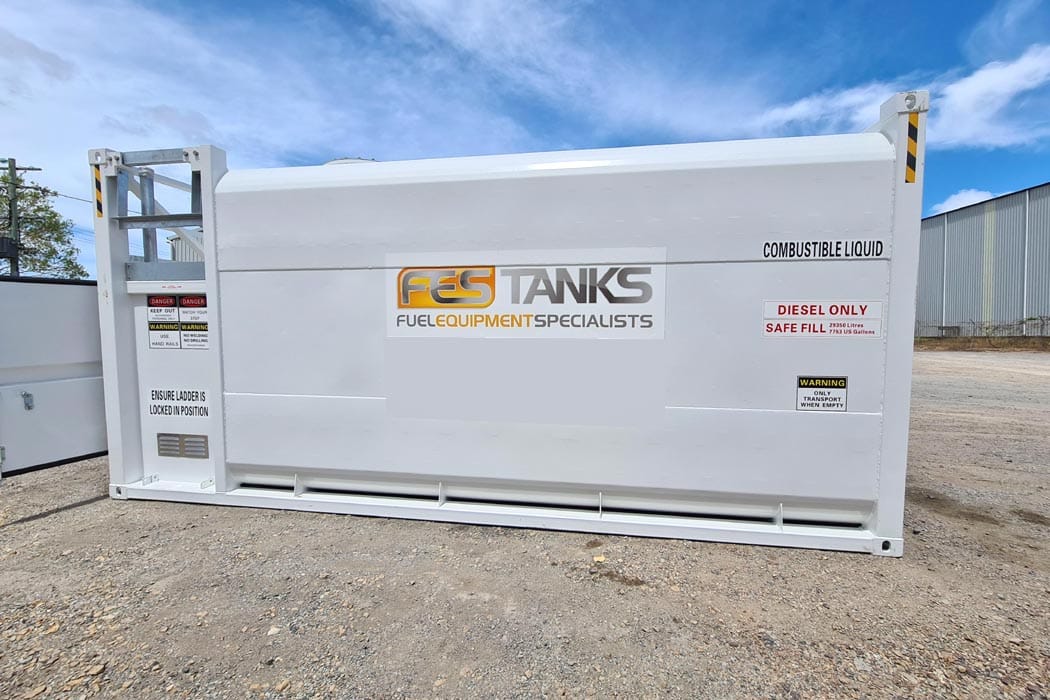

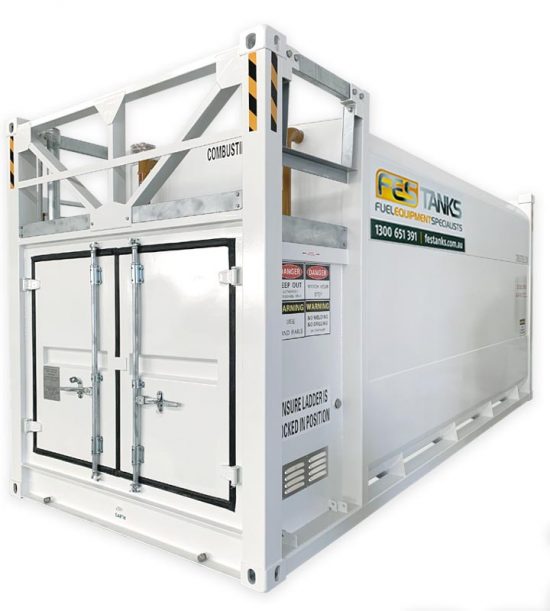

GRANDE 30

30,000L Aboveground Fuel Storage Tank

Diesel, Petrol or Oil Compatible

The Grande 30 aboveground self-bunded fuel tank has been designed for safe storage of diesel, flammable liquids, oils and hydrocarbons up to 30,000 litres.

It is ideal for operators looking for a large volume aboveground fuel storage solution while keeping within a smaller on-site footprint.

With a modular design and double-walled steel construction, this compact storage tank is a popular choice for remote refuelling. The GRANDE 30 tank complies with Australian Standards for the Storage and Handling of Flammable and Combustible Liquids whilst eliminating the need for costly concrete containment areas and site preparation work. Why not lay down multiple tanks in series to create a bulk fuel farm.

Designed for easy and convenient installation, the GRANDE 30 is fully equipped with internal and fill point pipework and comes standard with ISO container style corner casings for trouble-free transportation. Securely bolted doors open on to a fully self-contained bunded area for safe, measured fuel dispensing and filling.

For operators working in remote areas or looking to achieve efficiencies with refuelling sites that change with seasonal or project needs, this tank offers a cost-effective and fully compliant solution. Just dropship into place and you’re ready to connect to mains power or solar, fill and go.

The GRANDE 30 comes in a variety of colours, coatings and custom dimensions. Refuelling packages can be tailored to suit all applications.

Ask our fuel experts to show you how the GRANDE 30 can improve your fuel logistics and drive down overheads for your business.

Standards & Warranties

We created our unique range of self bunded tanks to comply with all aspects of aboveground fuel storage tanks regulations and compliance so you don’t have to.

GRANDE 30 Tank Data

Gross volume - 30,900 litres
Safe Fill Level - 29,350 litres
Empty (tare) weight - 7,705 kg
Length - 6,058 mm
Width - 2,438 mm
Height - 2,896 mm

Fuel Storage Compatibility

GRANDE Standard Features*

Aboveground modular ISO containerised self-bunded fuel storage tank design and constructed to AS1940, AS1692, AS1657, UL142 and ULC-S601-14 compliance as standard.

Double-walled construction consisting of:
6 mm Inner primary steel tank
6 mm Outer secondary steel tank
Lockable self-contained pump bay and dispensing area to front of the tank
Curved roof feature for water drainage to top of tank*
Extra paint thickness based on 250-300 microns for extra protection during harsh climates
Supplied with all statutory signage.
In-built tank access ladder and platform
Dual 2" manway tank access points
Updraft vent pipe
Aluminum anodized dipstick
Interstitial space monitoring point with anodized dip stick
Audible overfill protection alarm
6” and 4 “sockets for installation of submersible pumps
Bunded cowling and dispensing area
Dual hose high mast retractable units
Suitable for fuel farm configuration (master and slave)

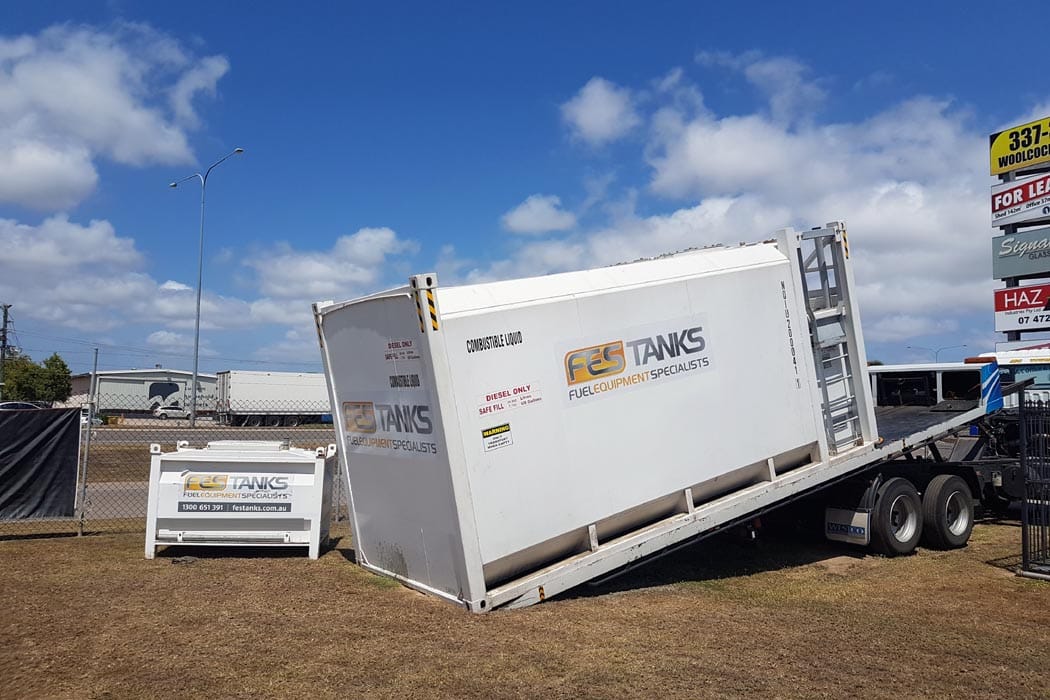

Transportable via tilt tray, side loader or flatbed semi-trailer
250 - 300 micron thickness ‘WHITE’ paint finish as standard (Other colour options are available upon request)

*Standard product specification and fitting arrangement may change as products evolve.

Incoming Fuel / Product

80nb Tanker fill pipework
Fire safe flanged ball valve, camlock adaptor & cap
Non return valve

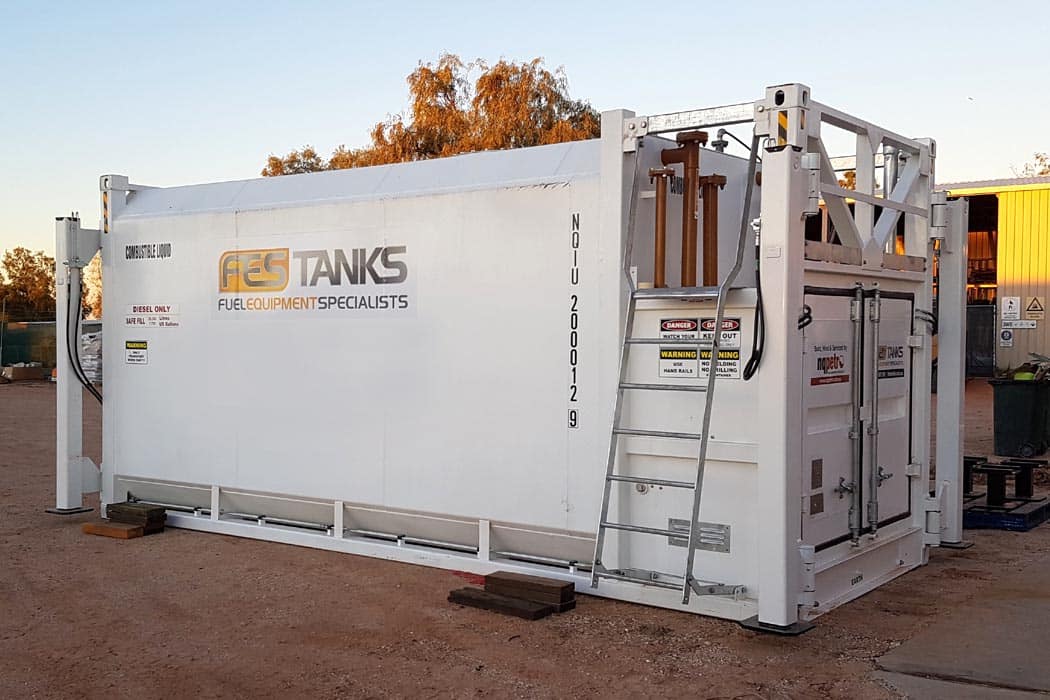

Hydraulic overfill valve with optional unload pump
Internal pipe work serviceable
High level alarm; hazardous rated & battery powered

Outgoing Fuel / Product

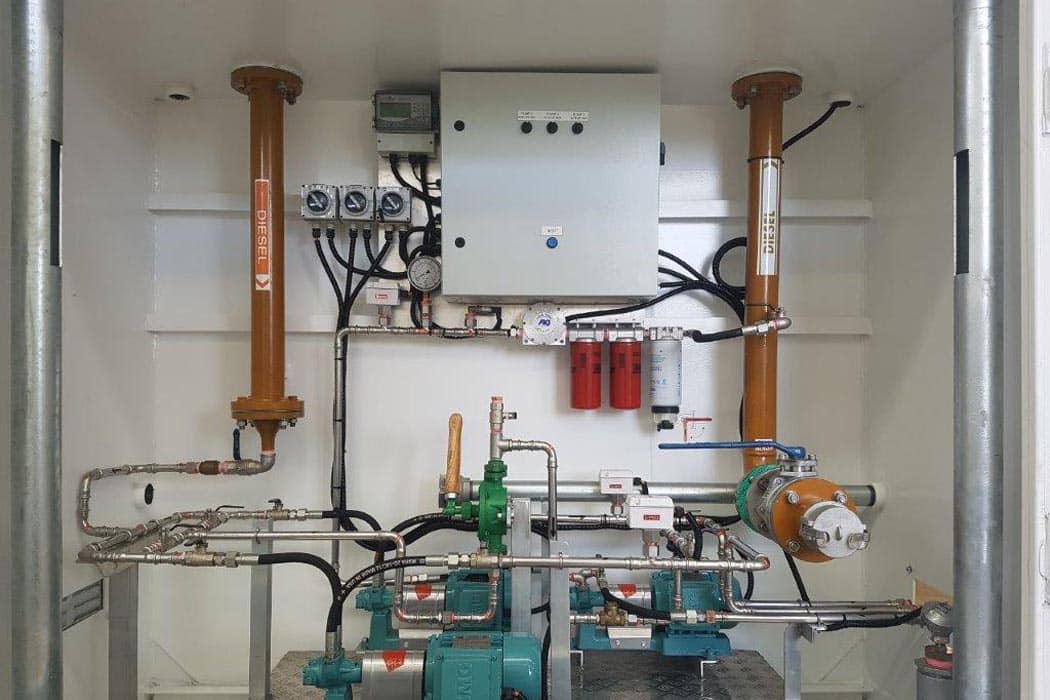

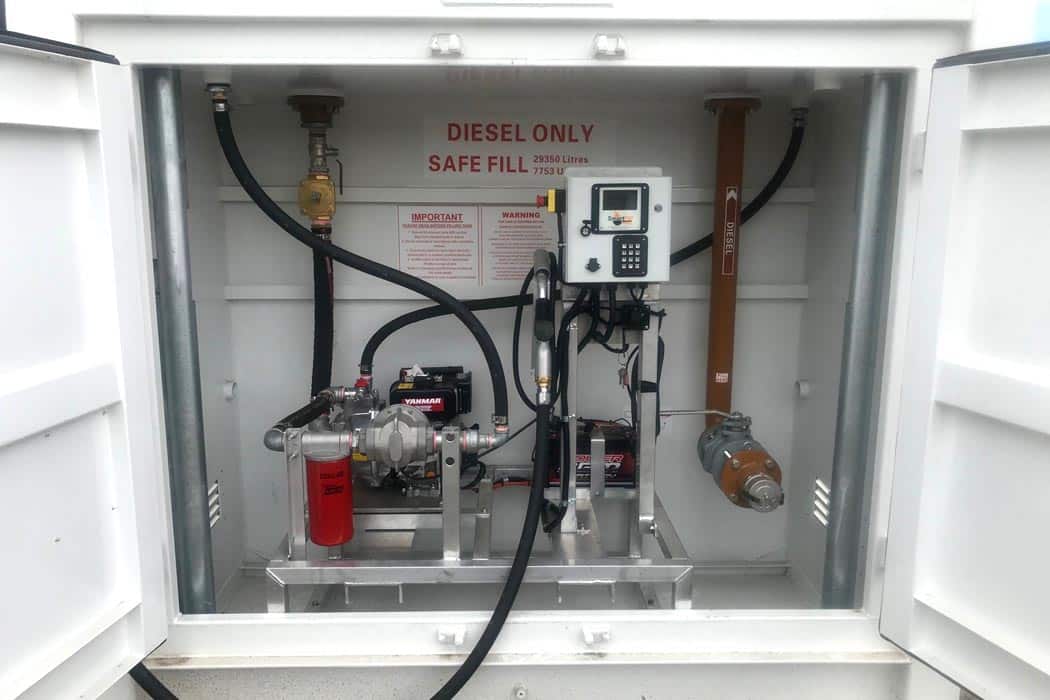

Pump Bay

Pump bay complete with water/product drain valves
Internal access for hoses from pylon kits
Pylon kits with counter weights (optional)
Lockable bund doors with rubber dust seal
Access ladder to work platform mounted on left or right hand side
Bund ventilation
Built in safety handrail system
Dual 50mm side wall cavity sockets
